Termocamera FOTRIC Ti4

€2.999,99
€2.999,99
Tasse incluse. Spedizione calcolata al momento del pagamento.
Limited-Time Offer
Save 18% Today
Automatically applied at checkout No code needed
Wondering why a room loses heat, an electrical connection runs hot, or a motor gets warmer than expected? The FOTRIC Ti4 helps you see temperature patterns and narrow down where to investigate. Autofocus, on-screen measurements, and image annotations make it easier to check your findings and explain them to a technician, customer, or colleague.

Description

  • Individua anomalie termiche con dettaglio termico chiaro

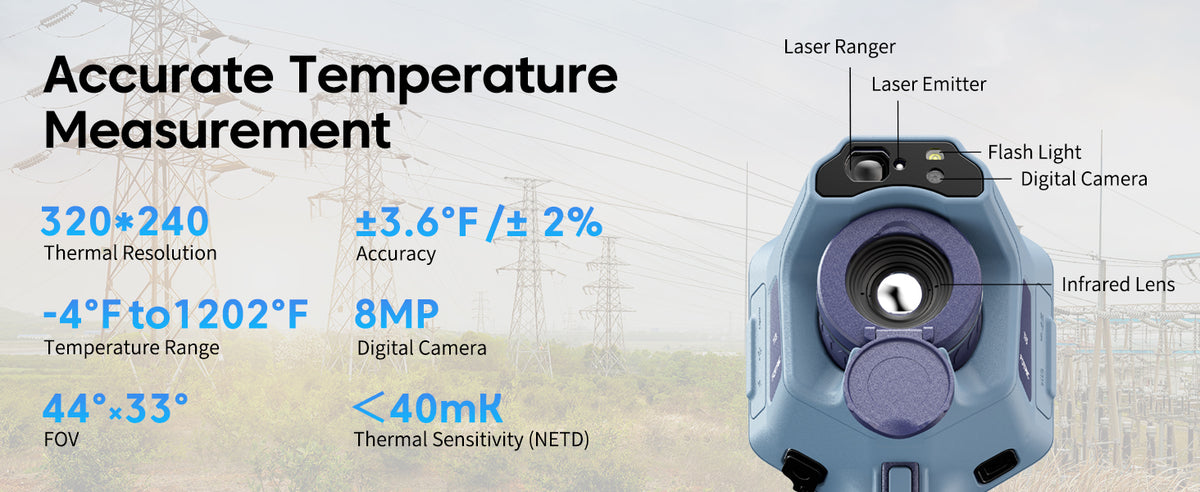

    Identifica pattern di temperatura insoliti in armadi elettrici, linee di alimentazione e apparecchiature meccaniche con risoluzione infrarossa nativa 320 × 240 e sensibilità termica <40 mK. Un intervallo di misura da -20°C a 650°C (-4°F a 1202°F) e accuratezza di ±2°C (±3,6°F) o ±2% supporta le ispezioni di routine su un'ampia gamma di apparecchiature.

  • Concentrati più velocemente passando tra i target

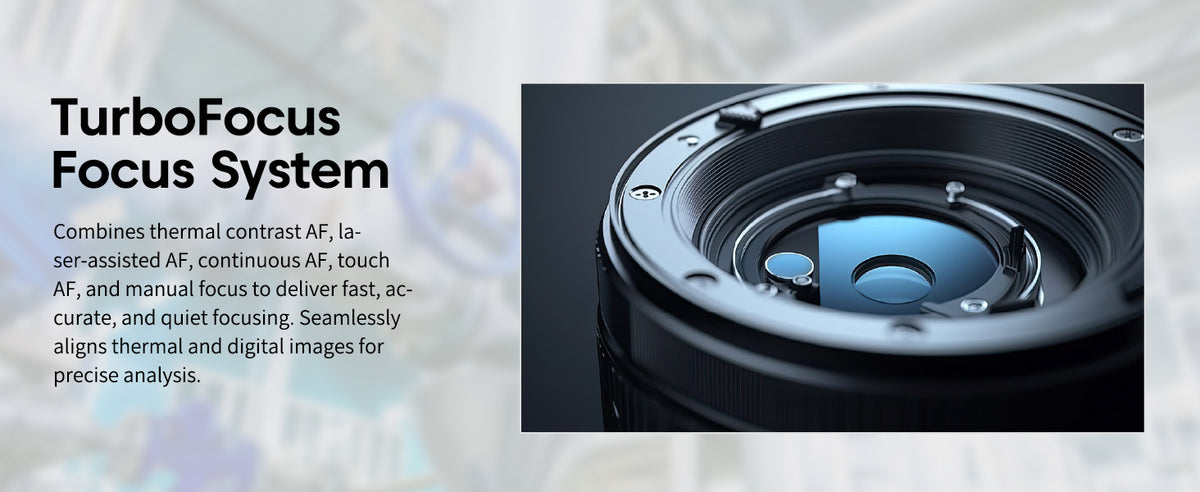

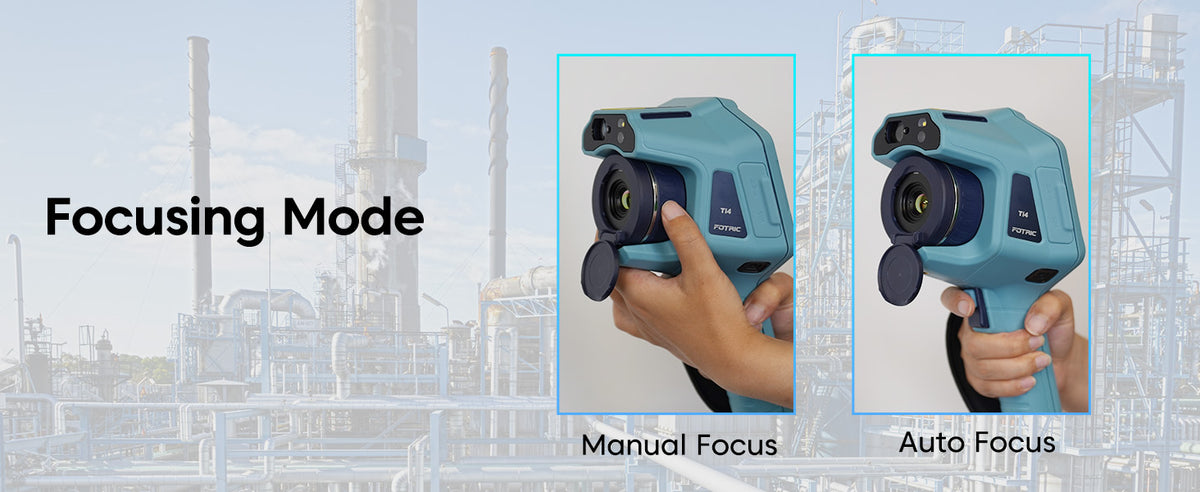

    Riduci il tempo dedicato all'adattamento dell'immagine con TurboFocus. L'autofocus laser, il contrasto termico e il focus tattile aiutano a mettere a fuoco i target velocemente, mentre il focus manuale ti offre controllo aggiuntivo durante l'ispezione di componenti specifici.

  • Comprendi e documenta le scoperte in loco

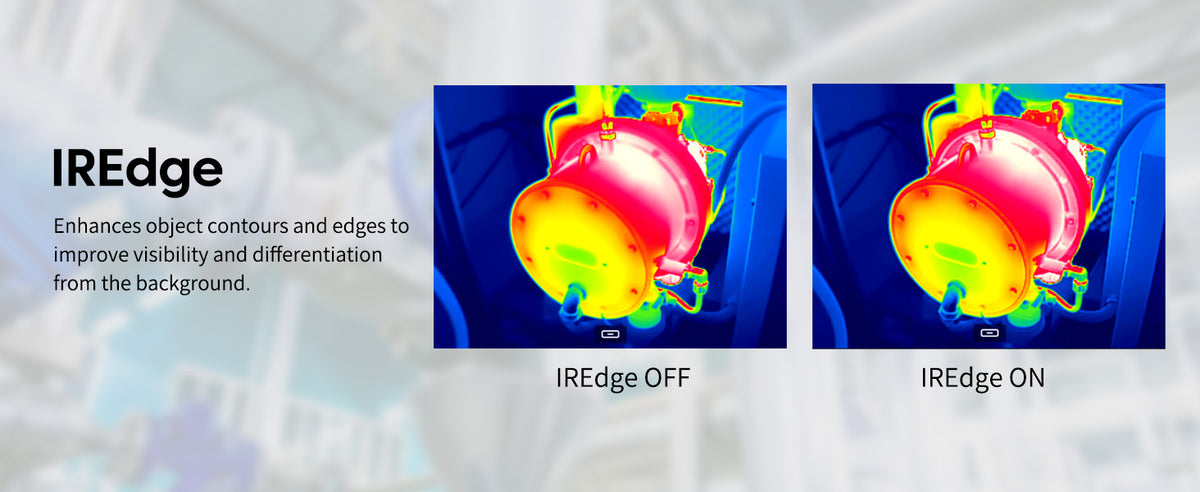

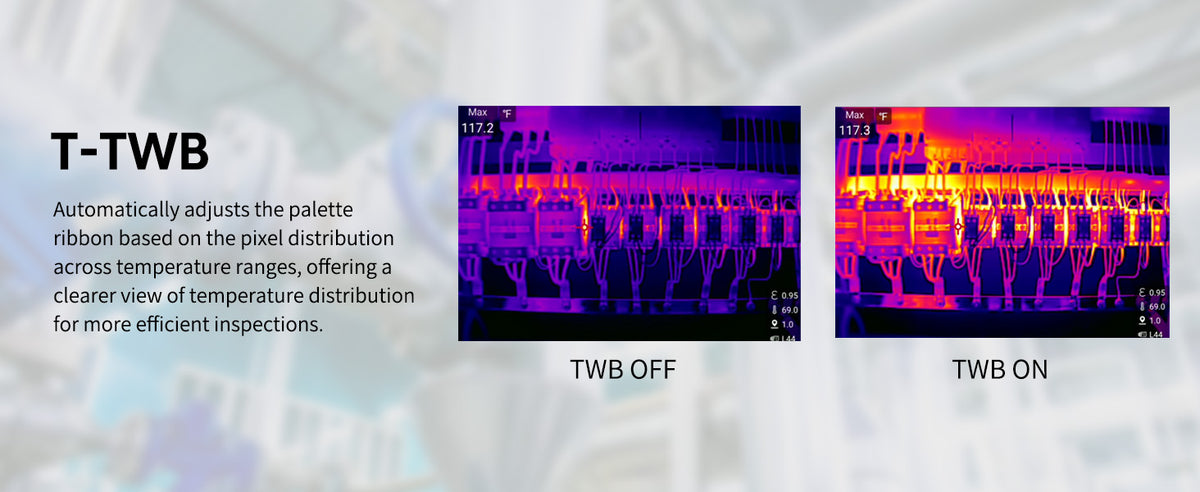

    Visualizza le immagini termiche sul touchscreen da 5 pollici 720p e confronta le temperature utilizzando gli strumenti di misura a 4 punti, 3 linee e 4 aree. IREdge migliora i contorni degli oggetti, e T-TWB rende i pattern di temperatura più facili da distinguere. Le annotazioni integrate ti aiutano a registrare il contesto mentre l'ispezione è ancora fresca.

  • Un solo strumento per manutenzione e insegnamento
    Indaga il surriscaldamento delle apparecchiature, valuta le perdite di calore degli edifici o dimostra il trasferimento termico in classe. Dalle ispezioni elettriche agli esperimenti di laboratorio e alle lezioni di ingegneria, la telecamera aiuta a rendere i pattern di temperatura visibili e più facili da spiegare.

  • Misura e documenta con meno incertezze

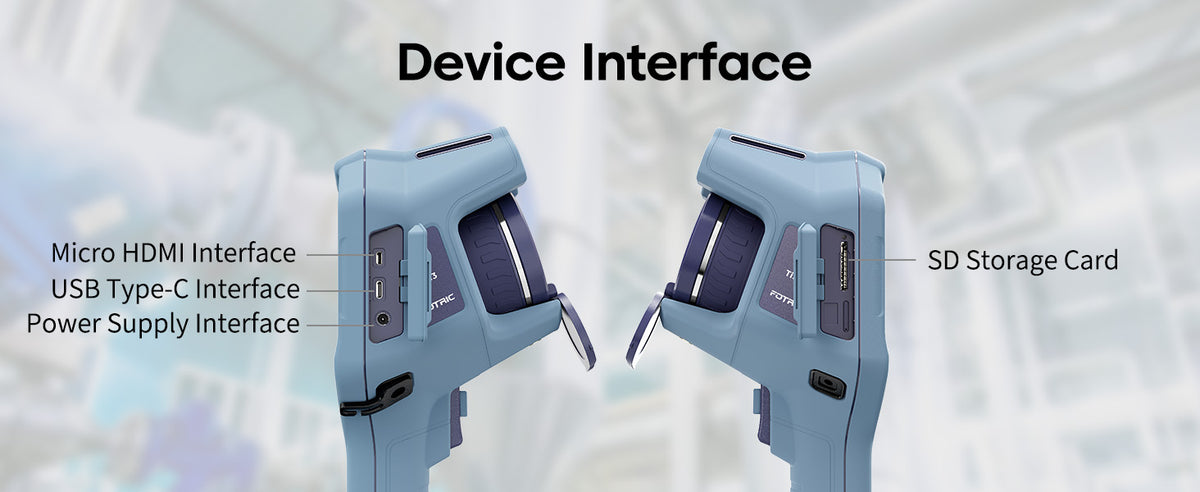

    Il telemetro laser integrato misura distanze da 0,1 a 50 m e supporta la misura di lunghezze e aree, aggiungendo contesto utile alle tue scoperte termiche. La connettività Wi-Fi, Bluetooth e HDMI offre opzioni per condividere dati o visualizzare risultati durante ispezioni e dimostrazioni.

  • Rimani attrezzato per ispezioni più lunghe
    La protezione IP54 contro polvere e schizzi e la resistenza a cadute da 2 metri aiutano la telecamera a resistere all'uso quotidiano sul campo. Due batterie ricaricabili incluse offrono almeno 4 ore di funzionamento ciascuna. Il kit include anche una base di ricarica, una scheda SD da 64 GB, cavi USB-C e Micro HDMI, coprilente, certificato di calibrazione, borsa morbida e custodia rigida per mantenere le tue apparecchiature protette e organizzate.
Tech Specs Show More Show Less
IR Resolution
320 × 240
Temperature Range
-20°C to 650°C (-4°F to 1202°F)
Focus System
TurboFocus Autofocus + Manual Focus
Field of View
44° × 33°
Display
5-inch 720p touchscreen
Battery Runtime
≥4 hours per battery
What's Included Show More Show Less
  • 1 ×FOTRIC Ti4 Thermal Imaging Camera with Lens
  • 1 ×Lens Cover
  • 2 ×Rechargeable Batteries
  • 1 ×Battery Charging Dock
  • 1 ×Power Adapter
  • 1 ×USB Type-C to USB Cable
  • 1 ×Micro HDMI to HDMI Cable
  • 1 ×64 GB SD Card
  • 1 ×SD Card Reader
  • 1 ×Accessory Kitwrist strap, strap holders, mounting screws, lanyard, and Allen wrench
  • 1 ×Documentation Packuser manual, packing list, calibration certificate, and warranty card
  • 1 ×Portable Soft Bag
  • 1 ×Hard Carrying Case
Quantity:
Termocamera FOTRIC Ti4
Prezzo al checkout €2.459,99 €2.999,99 Salva 18%

Which model is right for you?

Swipe to compare more models

Which model is right for you?
You're viewing
FOTRIC Ti4
FOTRIC Ti4
View options
FOTRIC Ti3
FOTRIC Ti3
View product
FOTRIC TK7
FOTRIC TK7
View product
FOTRIC Therm5
FOTRIC Therm5
View product
FOTRIC TK5
FOTRIC TK5
View product
FOTRIC TK6
FOTRIC TK6
View product
FOTRIC TK8
FOTRIC TK8
View product
Best for
HVACElectricalMechanical
HVACElectricalMechanical
HVACElectricalMechanical
HomeHVACElectrical
HomeHVACElectrical
PCBElectricalMechanical
ElectricalMechanicalPCB
Price €2.999,99 EUR €2.549,99 EUR €2.249,99 EUR €529,99 EUR €829,99 EUR €899,99 EUR €2.999,99 EUR
IR Resolution 320 × 240 160 × 120 384 × 288 320 × 240 320 × 240 384 × 288 384 × 288
Object Temperature Range −4°F to 1202°F −4°F to 1202°F −4°F to 1022°F −4°F to 842°F −4°F to 842°F −4°F to 1022°F −4°F to 1022°F
Field of View (FOV) 44° × 33° 25° × 19° 49° × 37° 50° × 38° 49° × 37° 25° × 19° 25° × 19°
Thermal Sensitivity (NETD) 40 mK 50 mK 40 mK @ 30°C 30 mK 40 mK 40 mK 40 mK @ 30°C
Focus Mode TurboFocus TurboFocus Focus-free Focus-free Focus-free Manual Manual
Display Size 5" 5" 3.5-inch touchscreen 3.2" 3.5" 3.5" 3.5-inch touchscreen
Digital Camera 8 MP 8 MP 8 MP 2 MP 5 MP 5 MP 8 MP

Everything You Need, Right Out of the Box

What's Included

  • FOTRIC Ti4 Thermal Camera with Lens & Lens Cover
  • 2 Rechargeable Batteries
  • Charging Dock & Power Adapter
  • USB-C to USB & Micro HDMI to HDMI Cables
  • 64 GB SD Card & Card Reader
  • Accessory Kit & Documentation Pack
  • Portable Soft Bag & Hard Carrying Case

Technical Specifications

IR Resolution
320 × 240
Temperature Range
-4°F to 248°F / 32°F to 1202°F
Measurement Accuracy
±2°C or ±2%, whichever is greater
Thermal Sensitivity (NETD)
<40 mK at 30°C
Field of View (FOV)
44° × 33°
Focus System
TurboFocus Autofocus + Manual Focus
Minimum Imaging Distance
0.1 m
Image Frame Rate
30 Hz
Superrisoluzione (SR)
5-inch touchscreen (1280 × 720)
Digital Camera
8 MP
Digital Zoom
1–6× continuous zoom
Measurement Tools
4 spots, 3 lines, 4 areas
Distanza minima di registrazione / allineamento delle immagini
≥4 hours per battery
Storage
64 GB microSD card; expandable up to 1 TB
Protection & Durability
IP54; designed to withstand a 2 m drop with standard lens

FAQ

FAQ

Need more than just FAQs? Access our complete library of user manuals, software guides, and step-by-step video tutorials.

View All Support Resources
Will Ti4 tell me what is wrong, or just show a hot spot?
  • It helps narrow down the problem: See which connection, motor, or bearing is warmer than surrounding or comparable components.
  • It supports your next decision: Use the pattern to decide where to inspect, test, or monitor more closely.
  • It does not diagnose the cause by itself: A hot area may have several explanations. Operating load, equipment condition, and follow-up checks still matter.
Can it help me find where my home is losing heat without opening walls?
  • Start with a non-invasive check: Scan accessible walls, ceilings, and areas around windows for uneven surface temperatures that may suggest insulation gaps or air leakage.
  • Choose useful conditions: Heat-loss patterns are generally easier to see when indoor and outdoor temperatures differ.
  • Know its limits: Ti4 cannot see through walls or confirm what is inside them. It helps you choose where further investigation may be worthwhile.
Is Ti4 worth choosing over a simpler, focus-free thermal camera?
  • Choose Ti4 if you need more control: Autofocus and manual focus are useful when you regularly inspect targets at different distances.
  • Choose it for detailed comparisons: On-camera measurement tools and annotations help when you need to compare components and document your reasoning.
  • A simpler camera may be enough: If you mainly want occasional household scans to spot obvious hot or cold areas, you may not need Ti4’s additional controls.
Can I use it confidently if I am new to thermal imaging?
  • Getting an image is straightforward: Autofocus helps you obtain a clear view without manually adjusting every shot.
  • Start with comparisons: Compare similar components under similar conditions instead of assuming every bright area is a fault.
  • Allow time to learn measurement basics: Surface emissivity, reflections, distance, and focus affect readings. Shiny metal is particularly easy to misinterpret.
Will it show small components clearly from where I need to stand?
  • It depends on size and distance: The farther away you are, the fewer thermal pixels a small component occupies.
  • Focus is only part of the answer: Ti4’s 320 × 240 detector and adjustable focus help capture detail, but a visible target is not automatically large enough for an accurate temperature reading.
  • Check your actual inspection needs: Before buying for small parts or distant equipment, provide the target dimensions and working distance so suitability can be assessed.
Can I use the results to explain a repair to a customer or technician?
  • Show the area of concern: Save thermal images and add annotations identifying the equipment and what you observed.
  • Make comparisons meaningful: Record operating conditions and compare similar components so the temperature difference has context.
  • Support the discussion: A clear visual record helps explain why further inspection is recommended, without presenting the image alone as proof that a component must be replaced.
